A classroom SNS to promote reflective activity in programming learning for children
© The Author(s) 2018
- Received: 7 November 2017
- Accepted: 20 March 2018
- Published: 10 April 2018
In recent years, workshops involving programming on computers have been held in elementary education to promote creative thinking. In our experience of conducting programming workshops for children for over 10 years, we cannot have enough time to let them share and reflect on their creative activity, although reflection is one of the important factors for successful experience-based learning. In order to solve this problem, we have developed a classroom SNS (social networking service) system for children to upload a post and share their project. On the SNS site, they can upload three kinds of contents: action view, code view, and comments. We conducted an experiment to examine if children have performed the sharing and reflection activity with the SNS system during a programming workshop. The result shows that the SNS system would promote motivation for children to reflect on their project.
- Programming education
- Social networking service
- Collaborative learning
- Knowledge sharing
Programming education is becoming an important element of elementary schools in Japan (MEXT 2011). The government has decided during the Industrial Competitiveness Conference to include programming education in compulsory courses from 2020. The purpose is to gain not only programming skills but also logical thinking skills. As a result, elementary school students have many opportunities to do programming through trial programming classes at a school or workshops.
In experience-based learning, it is very important to reflect on the activities. By doing so, your experience becomes your knowledge, and you can learn from your experience (Kolb 2014). It is essential to be evaluated by others in addition to engaging actively during a class, especially, in programming education (Monroy-Hernández 2007). Scratch (Resnick et al. 2009) which was specially developed for primary school students offers not only an easy programming function but also a function to share and publish the finished project to the world. However, current programming education focuses too much on writing a program itself. Therefore, users do not have much opportunities to present the finished project for evaluation and reflect on their experiences.
In this research, we propose a classroom SNS (social networking service) which enables users to share their project-in-progress as well as their finished project. Children can save their project progress which is useful to reflect on their activities. In addition, the SNS enables children to share knowledge among the classmates. Hence, we assume that the skill disparity will be smaller and creative motivation will increase.
The structure of this paper is as follows: First, we explain the contents of current programming education at primary schools. Then, we emphasise reflection activities focusing on programming education and propose a classroom SNS which aims to promote reflection activities. The result of the experimental implementation of the proposed system is also shown followed by a summary of the research.
Programming education in elementary school
The purpose of programming education
Many attempts have been made to introduce programming to children (Kelleher and Pausch 2005).
The purpose of recent programming education is not to develop human resources who can write a program using a programming language but to gain ‘computational thinking skills’ (Papert 1980; Wing 2006), which would play an important role to learn science (Basu et al. 2016) and build an ability to think logically. To reach an expected result, it is required to think logically on what to do and how to improve just like when using a computer. Another aim of programming education is to understand how computers are used in our daily lives and gain an ability to apply computers in one’s own life.
The primary objective of programming education is not to learn programming language itself but to be able to use programming skills as a tool.
As the interest in programming education increases, programming workshops are held by various organisers and some elementary schools offer pilot programming classes. Programming education in elementary and junior high schools does not have a long history. Therefore, programming language used in workshops and teaching methods vary depending on organisers and teachers. The most frequently used language is Scratch which was specially developed for beginners. According to the research conducted in 2015 by the Ministry of Internal Affairs and Communications in Japan, 36% of organisers use Scratch in programming workshops for elementary school students.
While listening to an instructor’s explanation like a school class, participants learn programming skills with the instructor. To support the participants who cannot keep up with the progress of a lesson, organisers tend to appoint a supporter(s). In most cases, participants are given the time to brush up their finished project when the trainer’s explanation is over. At the end of the lesson, participants are given the time to present their finished project in front of all the members or run the project in a small group. Since this learning type enables organisers to teach many people at once, lectures at elementary schools and one-time workshops are often instructed in this form.
In this learning, organisers distribute teaching materials to participants and respond to questions as necessary. Organisers typically appoint one supporter per four or five children. When the participants complete all the materials, supporters review the contents. Like the lecture-style learning, participants are given the time to brush up their finished project.
The organisers can prepare the materials which match each participant’s skill level. Therefore, a group of children with different programming skill levels can be taught in the same workshop. However, since not all the participants are using the same material in this style of learning, it is not possible to refer to the other participants’ project and teach each other.
Challenges of programming education
Most of 1-day workshops emphasise just experiencing programming, resulting in a rare chance to evaluate whether participants acquired the programming knowledge or not. In order to foster computational thinking skills, children are required to have established knowledge and skill for programming as a basis for creating their projects during the workshop. However, it is difficult to measure whether participants have acquired such knowledge, because conducting a paper-based test like a conventional subject does not fit well to the evaluation of the knowledge and skill of programming.
Programming education through continuous learning is still under the development stage in terms of knowledge establishment. Our challenge is to build a computer-based environment for children to establish knowledge at a programming workshop by generating reflection activities.
Reflection activities in programming education
Reflection activities in education
A reflection activity is performed in order for a learner to review the learned content and to establish the gained knowledge. Items related to reflection activities have been added to the current course of study guidance which had been implemented since FY 2010 in Japan. Hence, reflection activities are paid much attention in the last several years.
The value of experiencing will increase by reflecting on the experiences repeatedly over time and thinking about the meanings of experiences, especially in experience-based learning such as programming education. John Dewey said, ‘We do not learn from experience itself. We learn from reflecting on experience.’ In fact, during a class of ‘integrated studies’ at elementary schools, children often create a portfolio which supports them to reflect on their learning activities.
E-portfolio, an electronic version of portfolio, is a collection of students’ work and can be used as a tool to support reflective learning processes such as problem-based learning (Stefani et al. 2007). An application called ‘LoiLo’ allows children to be able to easily create a portfolio from paper notes which they are using daily and share the created portfolio with classmates.
Creative thinking spiral
In programming education, there is a model called ‘creative thinking spiral’ as a process model to foster creative thinking skills to come up with innovative solutions to the unexpected situations that will continuously arise in people’s lives (Resnick 2007).
The difference between Kolb’s experience-based learning model and Resnick’s model is that Resnick’s model includes a sharing process. The sharing process which enables users to reuse the program written by other people is very convenient due to the nature of programming activities (Monroy-Hernández and Resnick 2008). It also aims to nurture the idea of learning from each other based on the ideas and projects of other people by making the project public to others (Monroy-Hernández 2007; Resnick 2007). By sharing the finished project, users can receive feedback which contributes to reflection processes.
Challenges of creative thinking spiral in programming education
Scratch is a programming environment developed based on the above-mentioned creative thinking development spiral. Projects developed with Scratch will be published on the web and shared to the world by pressing a ‘share’ button. By sharing with others, other users can give comments on the shared project or improve the project.
Therefore, we propose a tool that allows the participants to share their projects many times during a workshop and aim to increase the number of opportunities not only to share but also to reflect. We think that posting project-in-progress enables children not only to understand their own project process after completing the project but also to gain some ideas from other children’s posts. Some research proposed systems to share project-in-progress in programming education for elementary school students. In Jots, the users share screenshots of Scratch screen and comments on the shared screen (Rosenbaum 2009). By doing so, it has been reported that there were various advantages such as recognising the usefulness of mistakes and comparing the learning process with others. However, sharing screenshots provides only the appearance of the program but not how the program works. There is also a research which proposed a system to create project progress documents of a workshop for children and share the data on the web (Katterfeldt and Schelhowe 2014). In this research, however, it was found that documenting the project progress is not suitable for reflection as it requires children additional efforts. Tools need to be user-friendly so that the children can easily post and browse as those actions occur many times during a workshop. Therefore, we intend to solve these issues by building a SNS site as its users are not required complicated operation to share, can easily view own posts, and can write comments on others’ posts.
Although using the existing SNS sites such as Facebook group could be a possibility as described in a literature (Wang et al. 2012), we believe that the structure of a post needs to be more well-organised to be used for sharing the project-in-progress in programming workshops; the ‘post-and-commenting’ structure in the existing SNS sites is too general, leading to additional efforts required to express children’s thoughts while working on their project.
Classroom SNS for supporting reflection
In this research, we build a classroom SNS that allows children to post and browse during a workshop in order for them to repeatedly share and reflect on their projects. In programming workshops, a program (organised by blocks in Scratch) and how the written program works are the necessary elements to reflect on what they learned. In addition to those two elements, we allow users to post the comments on the project.
Moreover, to generate sharing and reflection many times in one workshop, many posts to the SNS need to be made. Therefore, we enable the children to post with simple operation so that posting will not disturb the workshop progress and make children want to post.
iPad applicationTo post to the SNS, we adopt an iPad which is easier for children to operate than a personal computer. The screen of the iPad application is shown in Fig. 5.
Projects in a programming workshop are often created on a personal computer. When sharing the stage screen, users may share by capturing with the ‘print screen’ function. However, in order to reduce the complexity of the operation, we let users capture the stage screen by taking a picture of the screen with an iPad camera. How the program works is recorded as a movie and the program is captured as a still picture. In addition, children can freely write on the captured image of the program by handwriting. As we describe later, the program image can be hidden. The users handwrite the explanation of the program and comments on the comment entry screen.
The users post these three items (stage screen, programs, and comments) in one screen on the proposed SNS with the application browser. When the posting is completed, the system will notify other users on their browsers.
Posts are shared on the SNS site. Based on WordPress, the SNS site incorporates with BuddyPress which is a plug-in that creates a community site. Just like a standard SNS, each user can view other people’s posts by logging in with own user ID and password. The proposed SNS site can be accessed regardless of the terminal type. Therefore, the users can browse at home after the workshop is over.
Function to post with fun
Handwriting and stickersKeyboard typing is not easy and takes time for children. Therefore, we adopt handwriting input for text entry. It saves time and offers enjoyable time. Moreover, users can select the font colour to easily emphasise the comment as shown in Fig. 6.
In addition to the text entry, the system has a sticker function. Most of messenger applications such as Facebook Messenger offer a sticker function which enables users to easily express their emotion. Examples of stickers are given in Fig. 6. Since children sometimes create a game which is difficult to clear, the stickers include negative emotions.
SNS such as Facebook has a ‘Like!’ button to show viewers’ reactions to posts. We will provide similar reaction buttons in the proposed SNS as shown in Fig. 6. This allows viewers to easily respond to the posts. We think receiving reactions will lead to motivation improvement of the receivers.
Non-display function of posted images
In the posting screen of the iPad application shown in Fig. 5, users can post without showing a captured image of the program. This function is added with an intention that requiring one additional operation will activate actual interaction among children such as teaching each other. If the image of the program is hidden, other participants can only view how the program works and posted comments but not what kind of blocks are used in the program. If they wish to see the image of the program, they need to ask directly to the person who posted the image.
Generating creative thinking spiral with the proposed system
Imagination happens when you design a new function. This design step is not for a whole project design but for a small unit design such as what to make and what kind of function to add. If you do not know what to make or not come up with an idea, access the proposed SNS and grab some ideas from others’ posts. During viewing others’ posts, you can press the ‘Like!’ button and write a comment.
Create and play
Once you decide what to make, do programming following the plan. If you do not know how to do programming, access the SNS and get some hints on coding from others’ posts. When viewing others’ posts, you can press the ‘Like!’ button and write a comment. Once programming is done, run the project and check how it works.
When creating a certain function is completed, a user posts a movie of the stage screen, a program capturing image, and a comment on the proposed SNS. Using an iPad camera, the user takes a picture of the part you want to share with other participants and the part you want to record for reflection. In addition, the user enters comments against the program of project-in-progress. Once the posting is done, it will be notified to other participants’ PCs.
There are two opportunities to reflect. First opportunity is when a user posts on the SNS. The user writes a comment against the project-in-progress. When writing a comment, he/she reflects by looking back where he/she put a lot of thoughts and how he/she created the project. Second opportunity is when the user receives ‘Like!’ or comments from other participants on their posts. We think that users can reflect objectively by receiving evaluation from others.
Applying the proposed SNS to programming education
Basic information of the workshops
No. of participants
Move the robot (Romo) with Scratch (3 h)
Make shooting game (3 h)
Make snow playing game (90 min)
The workshop held on October 6 was an irregular workshop that participants wrote a program with Scratch for an educational robot called Romo. Other workshops were regular programming workshops using Scratch only. There were participants who have experienced Scratch programming in all workshops.
In order to conduct these experiments, we distributed a card with a user ID and a password for logging into the proposed SNS. In addition to a laptop PC for creating a project, we distributed one iPad per participant for posting. Hence, all the participants were able to post at any time during a workshop. Moreover, we let the participants bring back home the card with the log-in information so that they could access the SNS at home.
Main items of the questionnaire
How did you feel to post your project on SNS using iPad?
How did you feel with iPad operation?
When did you post? (2nd and 3rd workshops only)
In what kind of occasions did you access SNS from a PC?
Did you use the function to hide the program?
Please specify the reason of Q5.
Would you like to use the SNS next time?
Please specify the reason of Q7.
Contents posted to SNS
Posts can be divided into two types: useful for self-reflection and useful for knowledge sharing.
On the other hand, the latter type of posts is useful for knowledge sharing although they are primarily posted for self-reflection. Since those posts describe how the program works and how the poster wrote the program, they are useful for other participants. Examples are given in Fig. 10b. In this example, the comment describes an issue of the program and its solution.
Questions on the non-display function
Did you use the non-display function?
Did you view the hidden program?
Children behaviour during workshops
This section describes how the children behaved when they were posting to the SNS during the workshops.
Questions on usability of the SNS
Was it easy to operate iPad?
Was it fun to post to SNS your project using iPad?
Not so fun
Responses to the question asking whether it was fun to post to the SNS were mostly positive. The reasons of choosing ‘fun’ were because participants enjoyed sharing the posts. Examples of responses were ‘I like my posts being viewed by everyone’ and ‘I can get a hint from others’ posts’. In addition, operability was also given as a reason of choosing ‘fun’. Examples of answers were ‘it was fun to hide the program’ and ‘because I can write a message’. Some of the reasons for selecting ‘fair’ were ‘because I did not have much time to use it’ and ‘I did not understand how to use’. However, as there was no relation between the operability of iPad and the answer to whether it was fun to post to the SNS or not, we assume that operability did not affect the pleasure of posting to the SNS.
Questions on when to use the SNS
When did you post to SNS?
When I build a new function and want to be viewed by others.
(multiple answer allowed)
When I come to a break.
When I want to store to reflect later.
When did you view the SNS?
To refer others’ idea.
(multiple answer allowed)
To confirm if my record is successfully posted or not.
To see other’s progress.
SNS usage after the workshop
The purpose of this research is to promote reflection activities by enabling workshop participants to post their project-in-progress to the SNS. Here, we discuss whether the SNS actually promoted reflection and whether SNS is suitable as a tool to promote reflection. We also evaluate the effectiveness of the proposed SNS.
Promoting reflection activities

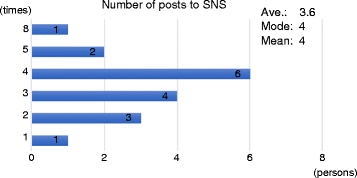

All the workshop participants posted at least once during the workshop. It means that at least one reflection activity per participant occurred during the workshop. Many children posted several times and most of those posts were made when they came to a break; therefore, reflection occurred many times during one workshop. In addition, as there were accesses to the SNS even after the workshops, those participants had opportunities to review their project once again and had reflection activities.
Questions on continuous usage of the SNS
Do you want to use the SNS
in next workshop?
Why do you want to use it again?
Because it was easy to understand
(multiple answer allowed)
how I created the program.
Because I can see how other participants
created a program.
From the given facts above, we can conclude that the proposed SNS could promote the reflection activities.
Using a SNS as a tool to promote reflection activities
Recording the production process by posting to the SNS resulted in receiving comments and ‘Like!’ reactions even if posts were for posters’ own interests. We think that receiving reactions from other participants leads motivation improvement. It is an advantage of the SNS that allows users to easily react to others’ posts.
Recording the production process should not decrease the time for creating a project. In that respect, the SNS has an advantage that it is easy to post compared to other blog and web services. Most of the children who attended the workshops did not face any difficulties in operating the proposed SNS and enjoyed using it. Therefore, they enjoyed posting the processes without spending too much time.
Moreover, displaying others’ posts and own posts on the same page in the timeline format led users to view others’ posts. Since writing a program in a regular workshop is often an individual task, participants do not have a chance to speak with other participants or to know what kind of program other participants are writing. From the questionnaire conducted, we assume that the proposed SNS provides users a way to know what others are doing. In addition, we think that the proposed SNS improved users’ motivation by putting the users being seen by other participants.
From the reasons mentioned above, we think that the proposed SNS promotes reflection activities.
Discussion on the validity of the proposed SNS
Two children responded negatively to the question asking if they want to use the SNS in a next workshop. They have participated in several workshops before our experimental workshops. As they have not recorded their production processes in the previous workshops, we think they could not see any advantages in making posts to the SNS. Moreover, we assume that they could not learn much from beginners’ posts from a knowledge sharing perspective.
From these facts, the proposed SNS is effective for beginners at present. In order to make this SNS effective for experienced participants, the posts with high-level contents are necessary. Hence, it is important to collect a large number of posts continuously during workshops and build the SNS as a knowledge centre.
We have presented a classroom SNS for promoting reflection activities and our experience of its application in actual programming workshops. Our contribution is that we have shown what functions are required to promote the reflection activities in programming workshops and revealed their effectiveness by applying the SNS to actual workshops and conducting the analysis with the questionnaire and the observation of children’s behaviour.
In programming workshops, participants cannot spend much time for reflection which is an important process of experience-based learning. Therefore, we have proposed a SNS where users post production processes aiming to promote reflection and knowledge sharing among the participants.
As a result of applying the proposed SNS to actual workshops, we have found that the proposed SNS provided many opportunities for children to post their production processes and reflect on their activities. Therefore, we have concluded that the posts are useful to reflect on their own experiences. In addition, we have confirmed that others’ posts are useful from a knowledge sharing perspective. However, knowledge sharing sometimes did not happen due to the skill level of participants and contents of posts.
This research still has the limitation in terms of evaluating the learning performance in programming workshops. Although the reflection which has been triggered by using this SNS site might change the children’s thinking process, it is not clear yet how the system improves the learning activity in quantitative measures such as learning time and the volume of created programs. Our future work includes applying this system to more actual workshops to collect more posts and verifying if children could accumulate and establish the knowledge from reflection activities.
The authors would like to thank to a non-profit organisation, Super Science Kids, for their support to conduct this research.
This work was supported by JSPS KAKENHI grant number 16H02925.
Availability of data and materials
The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.
KT mainly developed the system, conducted the experiments, and wrote a Japanese version of this paper. HT organised the evaluation workshops and finalised this paper after being translated to English by a professional academic writer. Both authors’ read and approved the final manuscript.
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
- Basu, S, Biswas, G, Sengupta, P, Dickes, A, Kinnebrew, JS, Clark, D (2016). Identifying middle school students’ challenges in computational thinking-based science learning. Research and Practice in Technology Enhanced Learning, 11(1), 13.View ArticleGoogle Scholar
- Katterfeldt, E-S, & Schelhowe, H (2014). Considering visual programming environments for documenting physical computing artifacts. In Proceedings of the 2014 Conference on Interaction Design and Children. ACM, (pp. 241–244).Google Scholar
- Kelleher, C, & Pausch, R (2005). Lowering the barriers to programming: a taxonomy of programming environments and languages for novice programmers. ACM Computing Surveys (CSUR), 37(2), 83–137.View ArticleGoogle Scholar
- Kolb, DA. (2014). Experiential learning: experience as the source of learning and development. New Jersey: FT press.Google Scholar
- MEXT. (2011). The vision for ICT in education: toward the creation of a learning system and schools suitable for the 21st century. Tokyo: http://www.mext.go.jp/component/a_menu/education/micro_detail/__icsFiles/afieldfile/ 2017/06/26/1305484_14_1.pdf.Google Scholar
- Monroy-Hernández, A (2007). Scratchr: sharing user-generated programmable media. In Proceedings of the 6th International Conference on Interaction Design and Children. ACM, (pp. 167–168).Google Scholar
- Monroy-Hernández, A, & Resnick, M (2008). Feature empowering kids to create and share programmable media. Interactions, 15(2), 50–53.View ArticleGoogle Scholar
- Papert, S. (1980). Mindstorms: children, computers, and powerful ideas, (p. 182). New York: Basic Books, Inc.Google Scholar
- Resnick, M (2007). All I really need to know (about creative thinking) I learned (by studying how children learn) in kindergarten. In Proceedings of the 6th ACM SIGCHI Conference on Creativity & Cognition. ACM, (pp. 1–6).Google Scholar
- Resnick, M, Maloney, J, Monroy-Hernández, A, Rusk, N, Eastmond, E, Brennan, K, Millner, A, Rosenbaum, E, Silver, J, Silverman, B, et al (2009). Scratch: programming for all. Communications of the ACM, 52(11), 60–67.View ArticleGoogle Scholar
- Rosenbaum, E (2009). Jots: reflective learning in scratch. In Proceedings of the 8th International Conference on Interaction Design and Children. ACM, (pp. 284–285).Google Scholar
- Stefani, L, Mason, R, Pegler, C. (2007). The educational potential of E-portfolios: supporting personal development and reflective learning. Abingdon: Routledge.Google Scholar
- Wang, Q, Woo, HL, Quek, CL, Yang, Y, Liu, M (2012). Using the facebook group as a learning management system: an exploratory study. British Journal of Educational Technology, 43(3), 428–438.View ArticleGoogle Scholar
- Wing, JM (2006). Computational thinking. Communications of the ACM, 49(3), 33–35.View ArticleGoogle Scholar
